3 Split Type J Box Solar Panel TY001 with SMD Bypass Diode for Module 500W
PV-TY001
**Core Parameters**
Rated voltage DC 1500V, Rated current 20A ,
Compatible with max.500W photovoltaic modules,
Equipped with standard MC4 connectors 1500V&43A (plug-unplug lifespan ≥ 100 cycles),
Use SMD bypass diode module
Rapidly suppresses hot spot effect
**Mechanical Design**
3 Split Type Junction Box for Solar PV Module 500W
IP68 Watetproof &UV Resistance
Qualified through thermal cycling tests (-40℃ to 85℃)
Ensuring a 25-year outdoor lifespan
Rated voltage DC 1500V, Rated current 20A ,
Compatible with max.500W photovoltaic modules,
Equipped with standard MC4 connectors 1500V&43A (plug-unplug lifespan ≥ 100 cycles),
Use SMD bypass diode module
Rapidly suppresses hot spot effect
**Mechanical Design**
3 Split Type Junction Box for Solar PV Module 500W
IP68 Watetproof &UV Resistance
Qualified through thermal cycling tests (-40℃ to 85℃)
Ensuring a 25-year outdoor lifespan
Quantity:
J Box Solar Panel
Model No.: PV-TY001
Product overview
As professional j box solar panel manufacturer, PV-TY001 is designed with full irrigation. This solar power junction box that is suitable for single polycrystalline 5 and 6 cells for high power 500w. There are six sets of bus-bar output ports, which are welded. At the same time, the j box solar panel can reduce the power loss of the component and improve the reliability of electrical connection.
Technical parameters
| Item | Specification |
| Rated Voltage (V) | 1500V (TUV standard) |
| Rated Current (A) | 20A |
| Working Temperature Range | -40℃~ 85℃ |
| Protection Degree | Class II |
| Waterproof Structure | Pouring Sealant |
| Volume of Potting Glue | 27 ml |
| Protection Grade | IP67 |
| Application Cable | 4mm2 |
| Width of Ribbons | ≤ 8mm |
| Connection Method | Soldering |
| Centerline Spacing Between Terminals | 15mm |
| Metal Materials | Tinned Copper |
| Insulation Materials | PPO/PA66 |
| Dimension | 55*67.5*17mm*2, 55*54*17mm*1 |
| Optional Connector | PV-TY008, PV-TY007 |

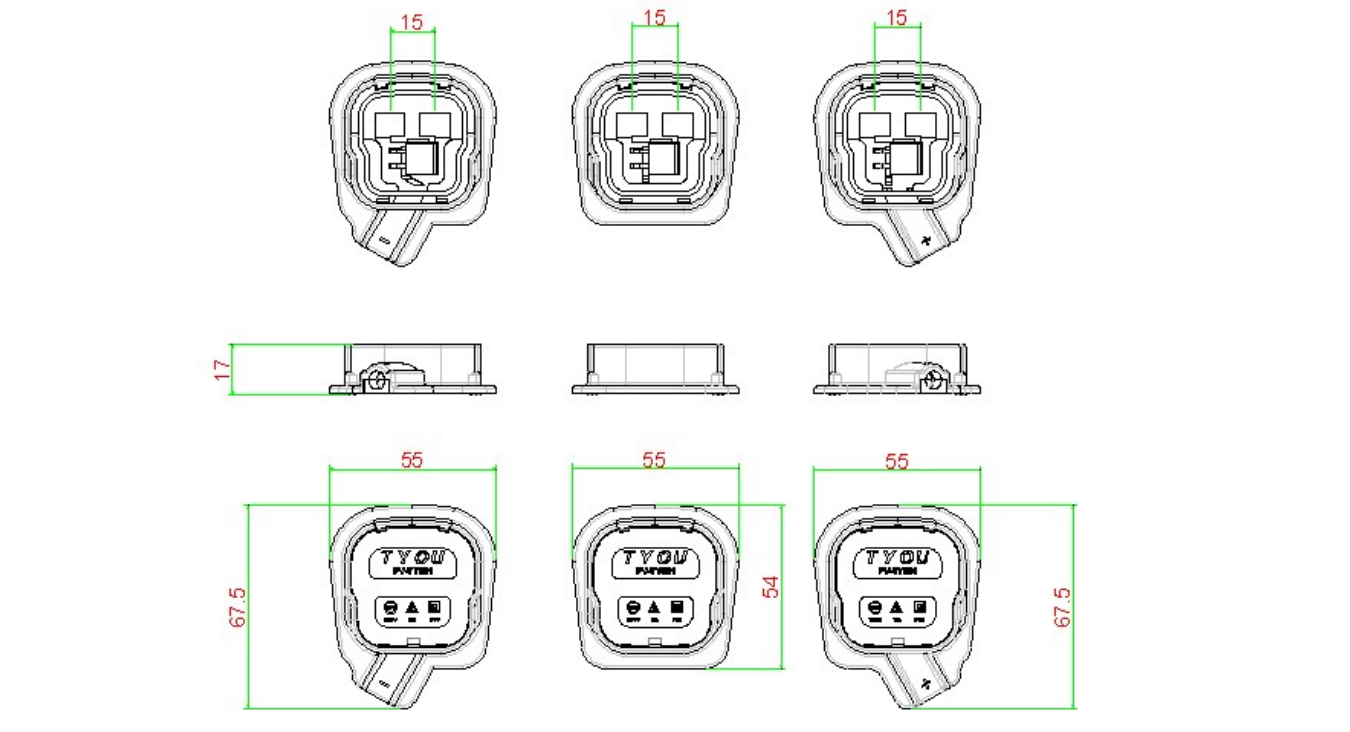

Drawing
Introducing TY001: High-Performance J Box Solar Panel
Upgrade your solar energy system with j box solar panel -TY001, a advanced solar power junction box engineered for reliability and maximum output. Designed specifically for high power up to 500W modules .
Core Innovation: 3 Splity design and SMD bypass diode module for j box solar panel
As our first split model of j box solar panel ,TY001 features a unique three-part Split Structure. This popular design, while slightly larger, provides superior internal space for enhanced safety and robust connections, perfectly meeting the demands of large-format, high-power pv solar modules. This split Structure of solar power junction box is a significant leap forward from traditional one integrated j box solar panel.
As our first split model of j box solar panel ,TY001 features a unique three-part Split Structure. This popular design, while slightly larger, provides superior internal space for enhanced safety and robust connections, perfectly meeting the demands of large-format, high-power pv solar modules. This split Structure of solar power junction box is a significant leap forward from traditional one integrated j box solar panel.
Unmatched Heart: Advanced SMD Diode Module for split type j box solar panel
At its core lies a high-efficiency SMD Diode Module. This premium 20A j box solar panel component utilizes cutting-edge chip technology to minimize power loss. Rated for systems up to 1500V, it ensures your investment is future-proof. The integration of this reliable SMD Diode Module to j box solar panel guarantees stable performance under high currents, making it a cornerstone of solar power junction box TY001's design.
At its core lies a high-efficiency SMD Diode Module. This premium 20A j box solar panel component utilizes cutting-edge chip technology to minimize power loss. Rated for systems up to 1500V, it ensures your investment is future-proof. The integration of this reliable SMD Diode Module to j box solar panel guarantees stable performance under high currents, making it a cornerstone of solar power junction box TY001's design.
Superior Reliability: Engineered with Thermal Glue Cooling for J box solar panel
We prioritize long-term durability of photovoltaic junction box . J box solar panel TY001 incorporates high-performance Thermal Glue Cooling throughout its assembly. This Thermal Glue Cooling system effectively transfers heat away from the critical SMD Diode Module of solar power junction box , significantly lowering operating temperature of j box solar panel . This proven Thermal Glue Cooling technology directly extends product lifespan and ensures solar power junction box and pv module work effectively .
We prioritize long-term durability of photovoltaic junction box . J box solar panel TY001 incorporates high-performance Thermal Glue Cooling throughout its assembly. This Thermal Glue Cooling system effectively transfers heat away from the critical SMD Diode Module of solar power junction box , significantly lowering operating temperature of j box solar panel . This proven Thermal Glue Cooling technology directly extends product lifespan and ensures solar power junction box and pv module work effectively .
Built for Bueatiful Future Life your solar energy system with TYOU solar power junction box
TY001 20A photovoltaic junction box is a robust solution for solar panel projects. It combines high-power j box solar panel with Split Structure, the efficient SMD Diode Module, and effective Thermal Glue Cooling to deliver unmatched value.
TY001 20A photovoltaic junction box is a robust solution for solar panel projects. It combines high-power j box solar panel with Split Structure, the efficient SMD Diode Module, and effective Thermal Glue Cooling to deliver unmatched value.
Ready to Power Your Project with TYOU solar power junction box TY001 ?
Looking for a competitive1500V j box solar panel price without compromising on quality? TY001 offers the perfect balance of performance, innovation, and cost-effectiveness. Contact us today for a quote on this premium 20A photovoltaic junction box and elevate your solar panel manufacturing.
Looking for a competitive1500V j box solar panel price without compromising on quality? TY001 offers the perfect balance of performance, innovation, and cost-effectiveness. Contact us today for a quote on this premium 20A photovoltaic junction box and elevate your solar panel manufacturing.
Today, we recomend TYOU solar power junction box to all customers , and we hope you learn more about TYOU with 20 years of solar power junction box R&D hehind us, TYOU IS an experienced manufacturer of solar power junction box .
Trust TYOU, we have worked with many European famous companies , offer OEM/ODM services . Choose TYOU brand different type solar power junction box for solar PV modules .
Trust TYOU, we have worked with many European famous companies , offer OEM/ODM services . Choose TYOU brand different type solar power junction box for solar PV modules .
All solar products include j box solar panel , TYOU produces solar products as TUV IEC 62790 include all j box solar panel, got TUV certification for every model solar power junction box .
Contact us today for more details of solar power junction box and free samples of split type photovoltaic junction box with mc4 .
