Blog -10: Breaking into the Quarter-Cell Era: The Next-Gen 1500V Split Solar Junction Box

As PV modules evolve toward smaller cells and higher density—is your solar  junction box ready?

( Model No. PV-TY2xy )

The shift from half-cut to one-third and quarter-cut cells radically complicates internal current paths. Each cut reduces power loss, but it also pushes the solar panel’s “nerve center”—the solar junction box—to its limits. While 1/4-cut solar modules are still in the experimental stage, reliable partners are essential. We proudly introduce TYOU new dedicated solar junction box for 1/4 cut PV modules, designed for the future.

From “Breaking Down” to “Integrating Up”

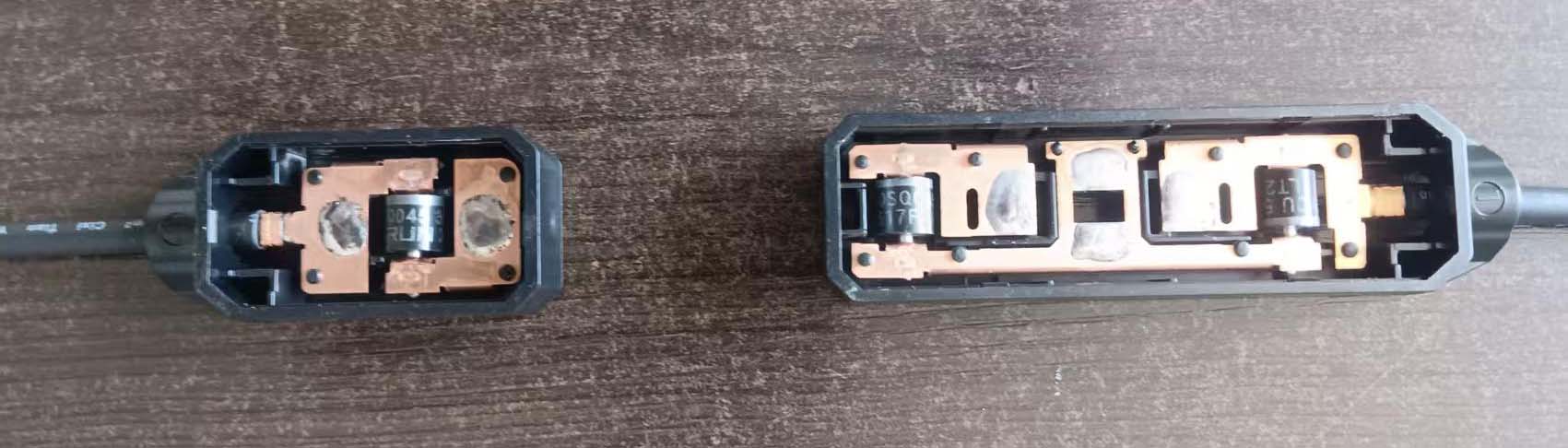

Quarter-cell technology cuts current to 1/4, slashing resistive losses exponentially. It also creates a more complex circuit. TYOU solar junction box handles this with 6 ribbons and 3 bypass diodes, perfectly matching the need for fine-grained sub-circuit protection. Three independent battery strings each get a dedicated bypass path, ensuring safe energy flow even under extreme shading.

Split Dual-Box Design Solves Heat and Space

To tackle concentrated heat, we abandoned the traditional single-box design for an innovative dual-box split architecture.

· Thermal Innovation: Heat sources are separated, effectively eliminating “thermal runaway” risk, even under continuous 25A–30A rated current.

· Flexible Fit: The two-box layout adapts easily to compact  solar module designs.

Continuous Evolution, Proven Quality

A good design is just the beginning. Our engineering team is relentlessly refining the manufacturing process in the lab—from precise soldering parameters to uniform potting—turning design potential into robust mass production capability. Meanwhile, we are pursuing TÜV certification to validate our work against the toughest third-party standards, building the market trust you need. (You can check technology standards on www.tuv.com)

Extreme Reliability, a New Benchmark

· High-grade electrical protection: Rated for 1500 VDC, covering 25A–30A, ready for high-power PV modules.

· Unfazed by harsh environments: IP68 rated with potting compound waterproofing, PPO housing, and tin-plated copper contacts—flame-retardant, heat-resistant, and corrosion-proof.

· Precision port design: Negative spacing 17.2 mm, positive 11.2 mm, boosting electrical safety margins and preventing arc faults.

· Reliable connection: Soldered ribbons ensure excellent conductivity and minimal long-term power loss.

Your Future Is Ready

Quarter-cut solar panel technology is the next key to PV efficiency and cost reduction, moving from lab to commercial use. This TYOU solar junction box is our ready-made solution for that certainty. We invite leading PV module makers and R&D teams exploring quarter-cut module designs to test with us. When your modules need to push boundaries, we provide the safest, most reliable connection and protection.

Innovation realized. Current unstoppable.

Your trusted partner for the quarter-cut solar panel era—TYOU

Contact us for samples and datasheets. Let’s open the next chapter of high-efficiency pv modules together.
