MC4 solar connector 1500V 43A - best male female mc4 cable connectors compatible with MC4 Evo2

MC4 Solar Connector 1500V 43A - Best Male Female Cable Connectors Compatible with MC4 Evo2

PV-TY 008-9
Connector Solar MC4 for PV Power System
Core Technical Advantages (20-Year Expertise) + 20-year PV manufacturing + full-process control
• ±0.01mm precision hand assembly + 100% QC (zero PIN misalignment)
• TUV-certified (IEC 62852): 43A & 1500V DC
• -40°C~+85°C + IP68 protection
• PA66+tin-plated copper → 25-year lifespan
• Polarized anti-misinsertion + snap-lock (tool-only unlock)
• Tool-free assembly (50% faster) + 2min quick replacement
• 2.5-6mm² cable compatibility (all mainstream modules)
• 1500V high-voltage support
• 100k+ units/day output + 1-15 day lead times
• Pros/DIY-friendly: low insertion force + intuitive operation
Quantity:
Contact Now
add to cart
   Drawing

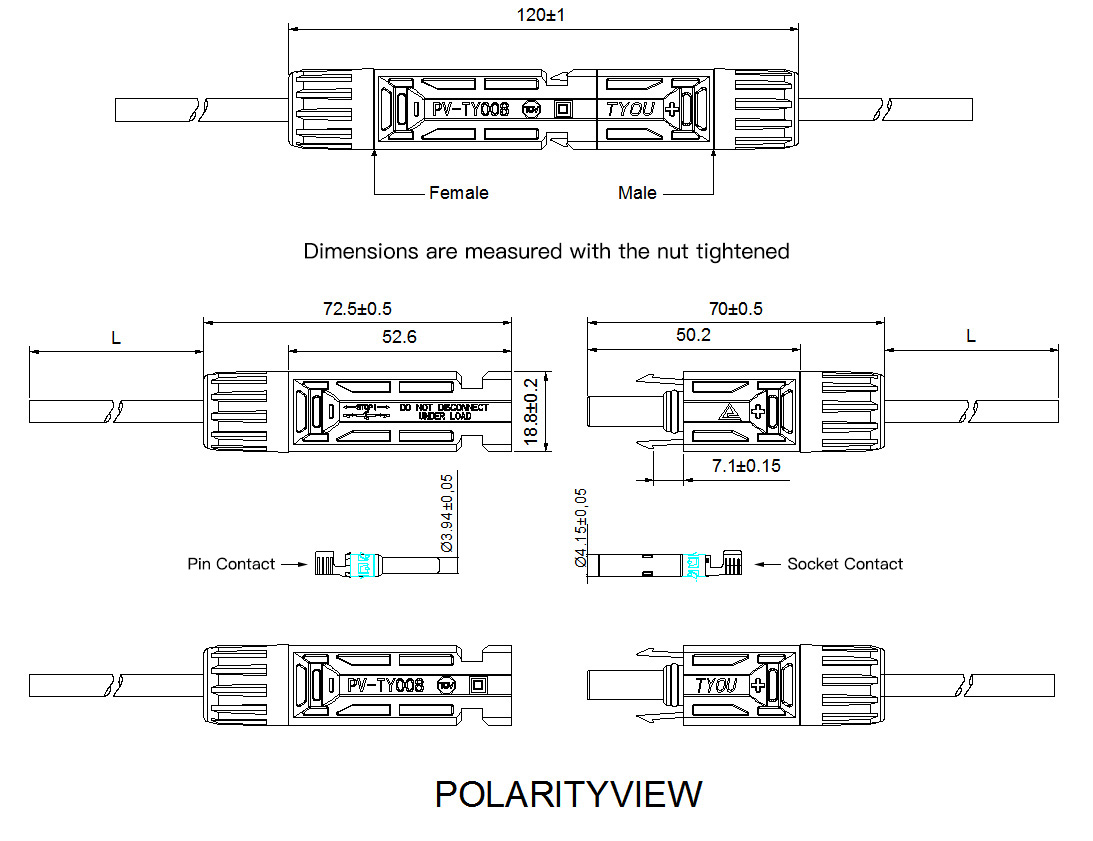

          drawing for connector solar mc4
   Technical Data Sheet

Connector Solar MC4 PV-TY008 Technical Data Sheet
connector solar mc4-1500VDC43A-TUV certified-TYOU brand
    Type  Φ4.0mm PV Solar Connector
    Rated Voltage  1500V DC
    Rated Current  43A
    Rated Impulse Voltage  16kV
    Rated Insulation Voltage   8kV
    Contact Resistance   ≤ 0.5mΩ
    Protection Class   Class ‖
    Pollution Class   2
    Insulation Material   PPE/PPO/PA
    Contact Material   Copper, Tin-Plated
    Temperature Range   -40℃ to +85℃
    Flame Resistance    UL94_V0  5VA
    Upper Limiting Temperature   100 ℃
    Cable Size   2.5mm2, 4.0mm2, 6.0mm2
    Application Class    A
    Over Voltage Category    III
    Relative Humidity    85%
    Pin Dimensions    Φ4.0mm
    Operating Cycles    100
    Sealing Material    Silicon Rubber
    Reference Standard    IEC 62852 / EN 62852
    Approval    TUV R 50585814

   TUV CERTIFICATE
 TUV Rheinland / Certificate No. R 50585814
 web site : www.tuv.com
 https://www.certipedia.com/certificates/50585814?locale=zh-CN

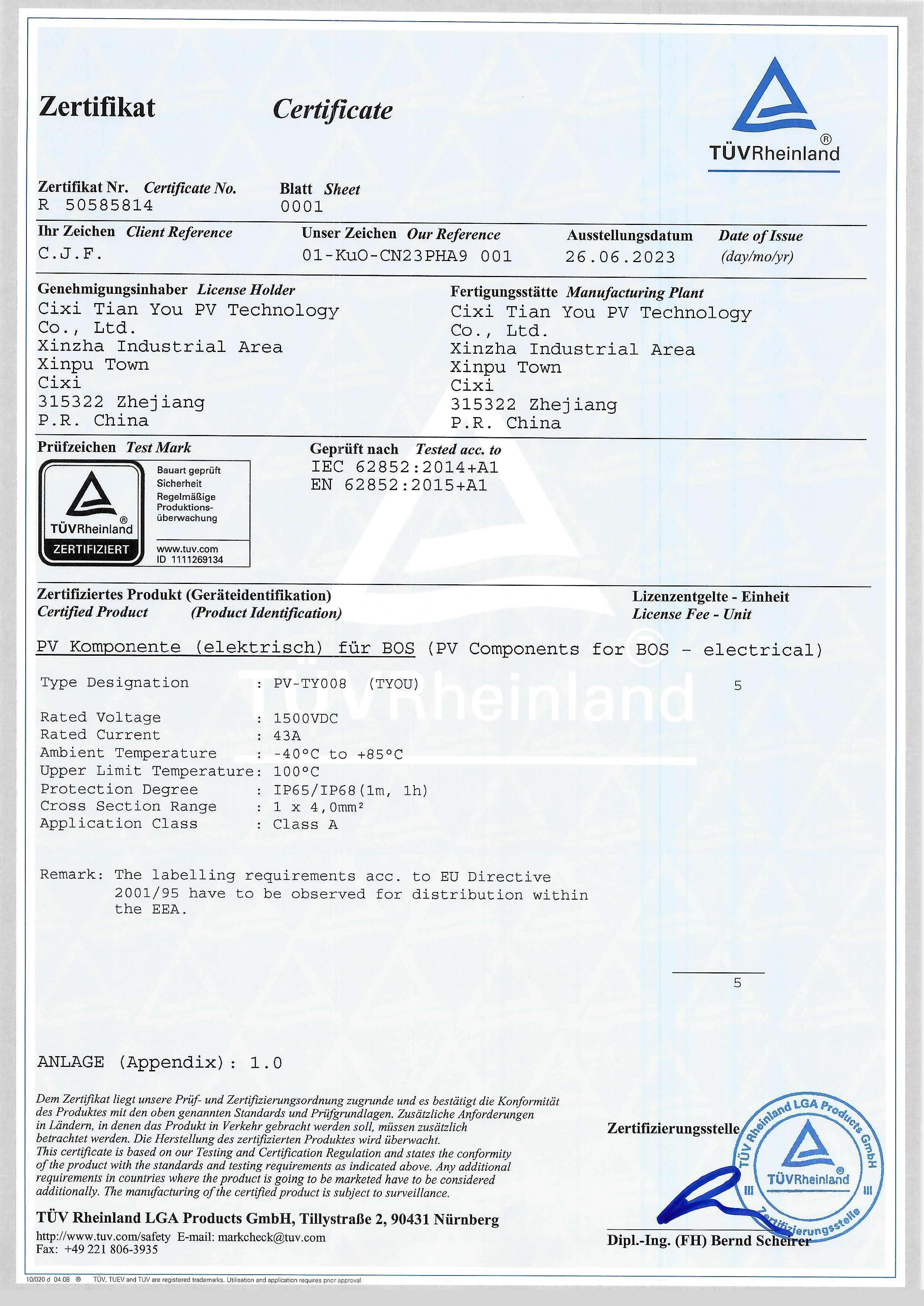

TUV certificate of connector solar mc4-1500VDC43A


    How to Ensure the Production of TUV-Standard  Connector Solar MC4 ?

precision molds of connector solar mc4   Logo marking on the mold of connector solar mc4

               ( PV-TY008  mold )                          ( Logo marking on the mold - OEM for clients )

With 20 years of PV manufacturing experience, TYOU engineers every  connector solar mc4 from mold to assembly with uncompromising precision.

✅Mold Design – The DNA of Connector Solar MC4
Micron-level tolerances (±0.005 mm) and CAE mold flow analysis ensure every connector solar mc4 cavity fills perfectly, avoiding short shots, warpage, and weld lines. Shrinkage is pre-compensated (PC/PE/PP 0.6%, PA 0.8%), and high-performance SKD61 steel (HRC 60, corrosion ≤0.03 mm/year) gives the mc4 cable connectors mold a lifespan exceeding 1 million cycles. This steel choice is fundamental for male and female mc4 connector that demands long-term dimensional stability. DLC-coated surfaces and 5-axis CNC machining (0.002 mm capability) further refine every housing.

✅Material Science – Engineering the 25-Year Connector Solar MC4
We select halogen-free, flame-retardant PA66/PPO so the connector solar mc4 housing withstands 85°C/85% RH, -40°C impacts (1 J, no cracking), and UV aging (xenon 1000 h, tensile strength retention ≥80%). Incoming resin is tested for MFR (15 g/10 min), CTI ≥600 V, and dielectric strength ≥20 kV/mm, guaranteeing consistent raw material quality for every connector solar mc4.

✅Terminal Integrity – The Electrical Heart of the Connector Solar MC 4
Ourconnector solar mc4 terminals employ high-elasticity copper alloy, bright tin plating (3–8 µm), and a four-arm elastic cage structure that ensures redundant contact paths. With contact force ≥20 N and insertion force ≤80 N, IEC 60512 testing proves the connector solar mc4 maintains contact resistance ≤0.5 mΩ even after 200 thermal cycles and 72-hour salt spray. Third-party TÜV/UL reports confirm the connector solar mc4 is built for 25 years of uninterrupted field performance.

( TUV website: www.tuv.com; UL website : www.ul.com; GB/T website: https://openstd.samr.gov.cn/bzgk/gb/index)

Assembly: Pre-assembly gaps, insertion depth, and tightening torque are all validated to lock in the reliability of every unit.

TYOU brand connector solar mc4 is one of the best  mc4 connectors, TYOUmc4 cable connectors are TÜV-Mark certified by TÜV Rheinland according to IEC/EN 62852 (Certificate No. R 50585814), rated for up to 1500V DC PV systems and compliant with 2 PfG 3100/03.2025 for high-temperature environments, ensuring long-term safety and reliability under harsh outdoor conditions.

    Installation Show
installation-connector solar mc4
