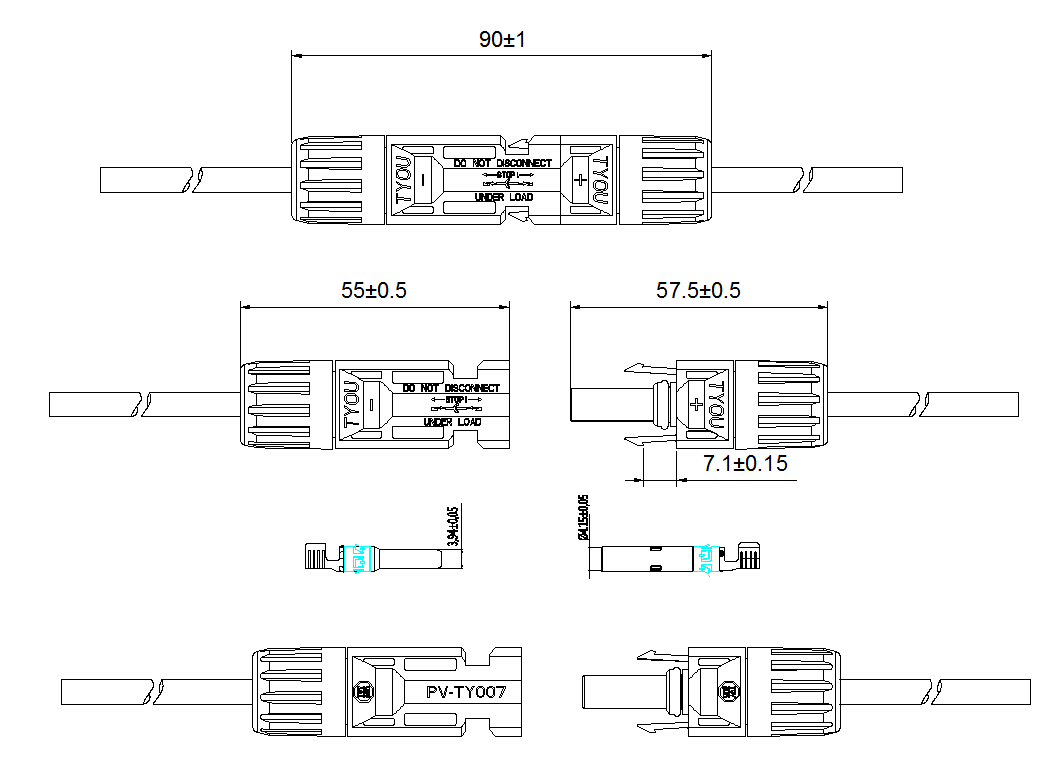

Solar Cable Connectors 1000V 30A - MC4 Male Female Connector Pin for PV Panels

✅ Mold Design – The DNA of Solar Cable Connectors

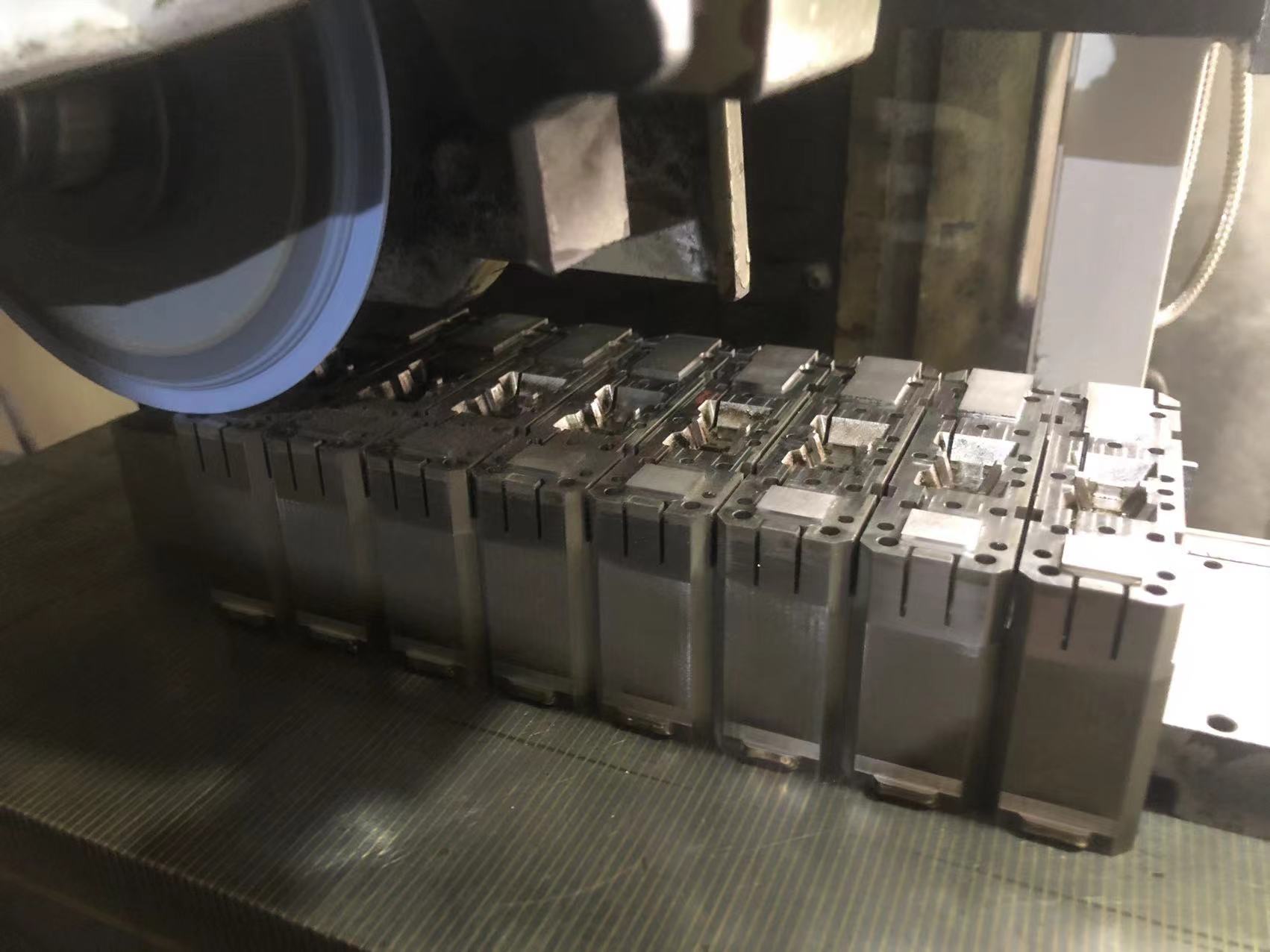

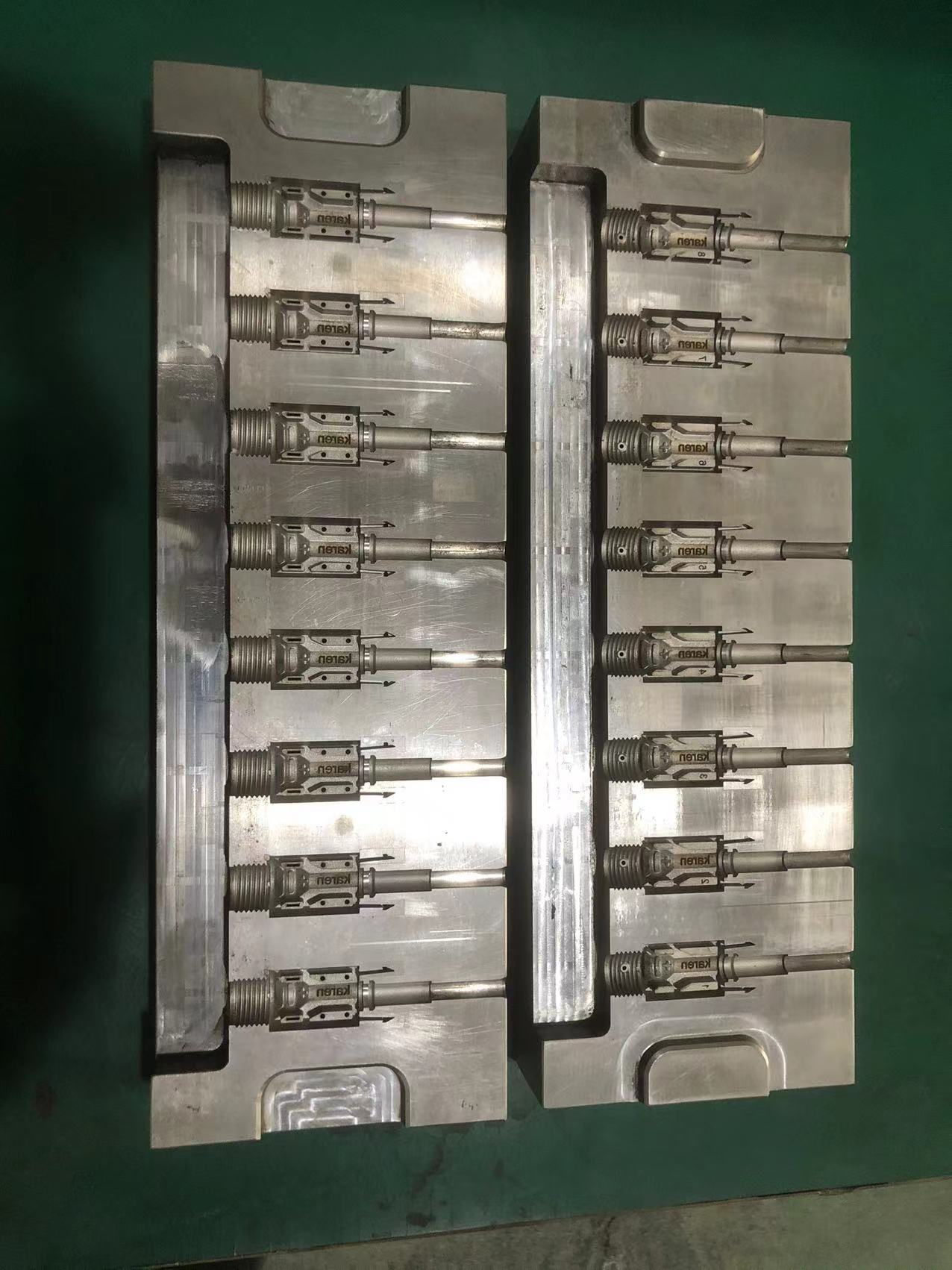

Micron-level tolerances (±0.005 mm) and CAE mold flow analysis ensure every compatible mc4 solar cable connectors cavity fills perfectly, avoiding short shots, warpage, and weld lines. Shrinkage is pre-compensated (PC/PE/PP 0.6%, PA 0.8%), and high-performance SKD61 steel (HRC 60, corrosion ≤0.03 mm/year) gives the solar module mc4 connector male and female mold a lifespan exceeding 1 million cycles. This steel choice is fundamental for compatible mc4 solar cable connectors waterproof IP68/IP67 that demands long-term dimensional stability. DLC-coated surfaces and 5-axis CNC machining (0.002 mm capability) further refine every housing.

✅ Material Science – Engineering the 25-Year Solar Cable Connectors
We select halogen-free, flame-retardant PA66/PPO so the compatible staubli mc4 positive and negative connector housing withstands 85°C/85% RH, -40°C impacts (1 J, no cracking), and UV aging (xenon 1000 h, tensile strength retention ≥80%). Incoming resin is tested for MFR (15 g/10 min), CTI ≥600 V, and dielectric strength ≥20 kV/mm, guaranteeing consistent raw material quality for every solar module mc4 male female connector .

✅ Terminal Integrity – The Electrical Heart of the Solar Cable Connectors
Ourcompatible mc4 male female connector terminals employ high-elasticity copper alloy, bright tin plating (3–8 µm), and a four-arm elastic cage structure that ensures redundant contact paths. With contact force ≥20 N and insertion force ≤80 N, IEC 60512 testing proves the solar cable connectors maintain contact resistance ≤0.5 mΩ even after 200 thermal cycles and 72-hour salt spray. Third-party TÜV/UL reports confirm the compatible mc4 solar cable connectors are built for 25 years of uninterrupted field performance.

( TUV website: www.tuv.com/ www.tuvsud.com ; UL website : www.ul.com; GB/T website: https://openstd.samr.gov.cn/bzgk/gb/index)

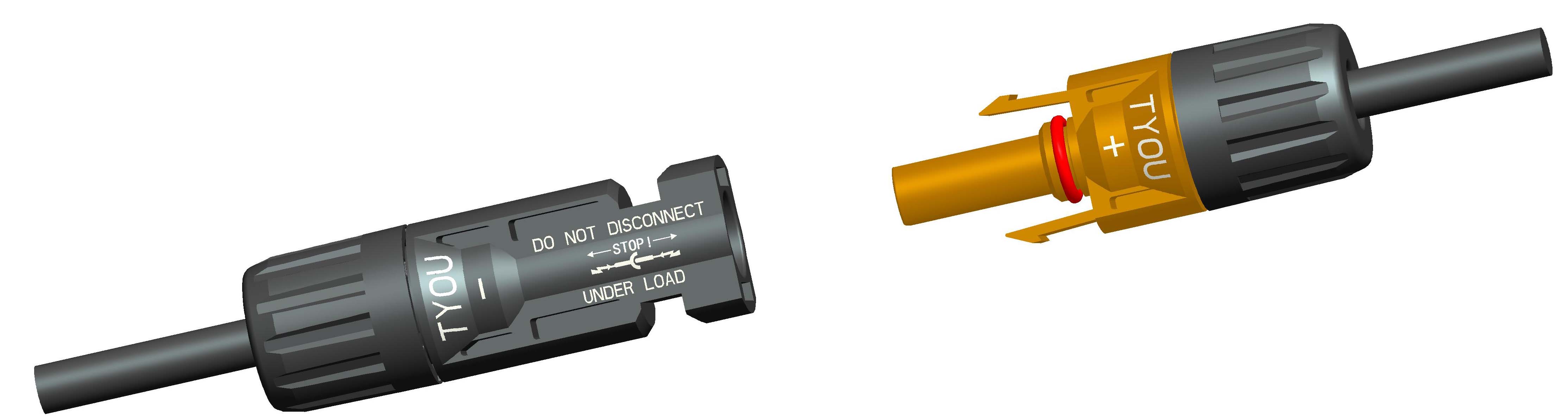

Assembly: Pre-assembly gaps, insertion depth, and tightening torque are all validated to lock in the reliability of every unit.

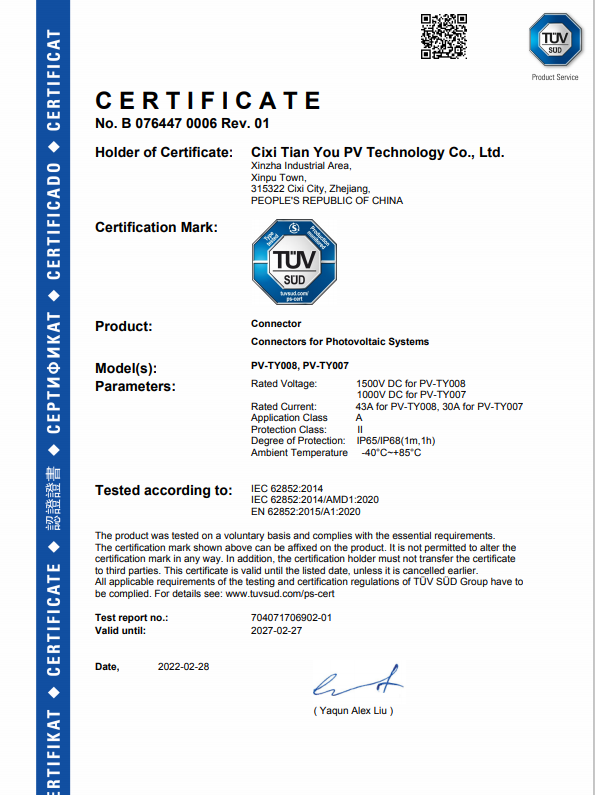

TYOU brand  solar cable connectors are  one of the best  mc4 connectors, TYOU solar cable connectors for solar panels are TÜV-Mark certified by TÜV Rheinland according to IEC/EN 62852 (Certificate No. B 076447 0006), rated for up to 1000V DC PV systems and compliant with 2 PfG 3100/03.2025 for high-temperature environments, ensuring long-term safety and reliability under harsh outdoor conditions.
